Standard Jib Cranes

Jib Crane

Jenmon Jib Cranes are rational and low-cost handling equipment which do not require any modifications to the building, and are applicable in numerous industries.

They are compact, whilst at the same time enabling loads to be moved in every direction. As an ideal companion for Overhead Cranes, they cover the workshop as a whole, increasing autonomy and efficiency of every workstation.

4 kinds of jib cranes

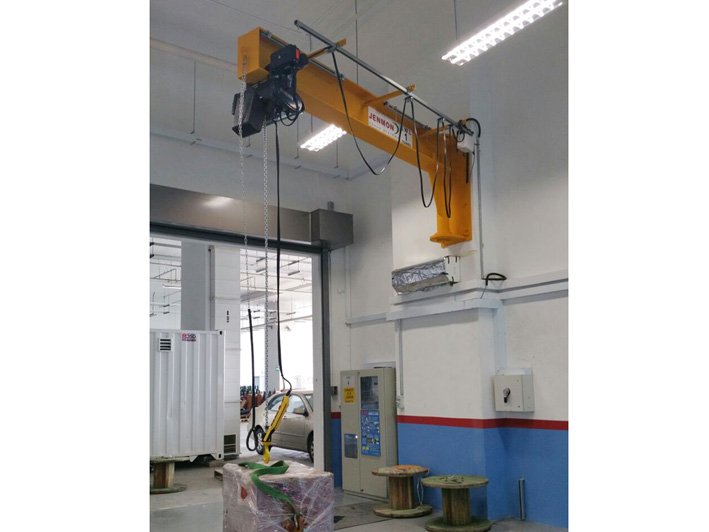

(1) Wall-mounted Jib Crane: fitted onto a wall or post, making it possible to serve a 180° section, over a span of up to 7m

(2) Pillar-mounted Jib Crane: mounted onto a column, capable of partial or full rotation. It is anchored to the ground, thus being totally independent from the building. It can serve at a work area of up to 360°, over a span of up to 7m

(3) Double arm Pillar-mounted Jib Crane: similar to its predecessor, it has a partial rotation capability, and can serve at a work area of up to 270°, over a span of up to 7m on both sides of the crane. The articulated Jib Crane easily handles loads ranging from 50kg to 1,000kg, over a 5 to 2 m span, almost full circle, and practically no dead space (the articulated arm allows working around obstacles)

(4) Wall-mounted Travelling Jib Crane: similar to the Wall-mounted Jib Crane, it is also able to serve a 180° section. Despite being attached to the wall, it can travel distances as required by the customer.

Optional

  • A Tight-Wire Festoon
  • Anchor Bolts
  • Rotation Stops
  • Collectors
